The SGM48013 is a high-speed gate driver capable of effectively driving MOSFET and IGBT power switches. It allows for up to 8A source and 13A sink peak currents at VDD = 20V. The SGM48013 provides a comprehensive set of protection features such as thermal shutdown protection, under-voltage lockout and short-circuit protection. It operates with a wide supply range of 4.5V to 20V.

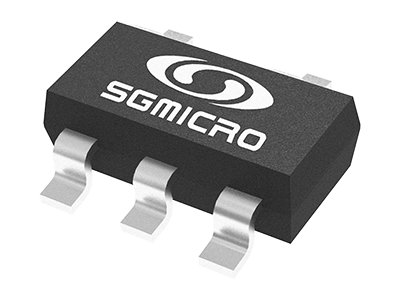

The SGM48013 is available in a Green SOT-23-5 package. It operates over a temperature range of -40℃ to +125℃.

• Simple and Reliable

• 8A Source and 13A Sink Peak Currents

• Wide Supply Voltage Range: 4.5V to 20V

• Fast Propagation Delays: 30ns (TYP)

• Fast Rise Time: 7ns (TYP)

• Fast Fall Time: 8ns (TYP)

• Ringing Suppression

• Negative Voltage Capability on IN Pin: -10V when (VDD - VIN) ≤ 22V

• Negative Voltage Capability on OUT Pin: -5V (Pulse < 500ns)

• Comprehensive Protection Features

   Thermal Shutdown Protection

   Under-Voltage Lockout

   Short-Circuit Protection

• -40℃ to +125℃ Operating Temperature Range

• Available in a Green SOT-23-5 Package

• Power MOSFETs

  IGBT Driving for Power Supplies

  Motor Drivers
