The SGM2528 is a compact electronic fuse (eFuse) with a complete set of protection functions. The wide operating voltage range is specifically designed for many popular DC buses.

The SGM2528 provides excellent accuracy, making it very suitable for many system protection applications. It provides accurate over-voltage (OV) and undervoltage lockout (UVLO) protections, which ensure tight supervision of bus voltages and eliminate the need for supervisor circuits. The over-voltage (OV) protection will clamp the eFuse output at a fixed level during input voltage surges. During the input voltage transient, the internal FET remains on, which allows the load to continue to operate. If the transient duration remains long, the accumulated heat will cause the eFuse thermal shutdown. Once in thermal shutdown, latch-off and auto-retry thermal options are available.

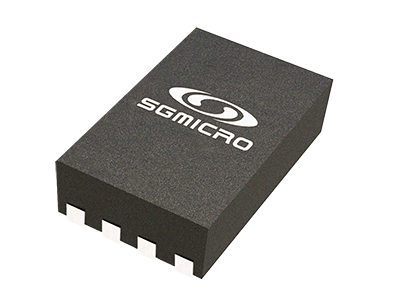

The SGM2528 is available in a Green TDFN-3×3-10L package.

FEATURES

● Wide Input Voltage Range from 9V to 18V with Surge up to 30V

● Extremely Low RDS(ON) for the Integrated Protection Switch: 26mΩ (TYP)

● 3-State ENABLE/FAULT Pin, Bidirectional Interface

● Programmable Soft-Start Time

● Programmable Current Limit up to 5A

● Thermal Shutdown Options:

 SGM2528A: Thermal Latch-Off with VCLAMP

 SGM2528B: Thermal Auto-Retry with VCLAMP

 SGM2528C: Thermal Latch-Off without VCLAMP

● Fault Output for Thermal Shutdown

● Accurate Under-Voltage Lockout

● Accurate Over-Voltage Clamp (SGM2528A and SGM2528B)

● Available in a Green TDFN-3×3-10L Package

APPLICATIONS

Hard Drives

PCIE SSD

Motherboard Power Management
