The SGM8902 is a 2Vrms to 3Vrms pop/click-free stereo line driver. The device is ideal for single supply applications. Capless design can eliminate output DC-blocking capacitors for less-component count and low-cost.

The SGM8902 has differential inputs and is capable of driving 2Vrms into a 2.5kΩ load with 3.3V supply voltage. Build-in shutdown control also helps for pop/click-free on/off control. The gain can be set by users from ±1V/V to ±10V/V through external gain setting resistors that also allows the implementation of a 2nd-order low pass filter to compliment SOC and DAC's converters.

SGM8902 does not require a power supply. An integrated charge pump generates a 2Vrms output negative power rail that provides a clean, pop/click-free ground offset.

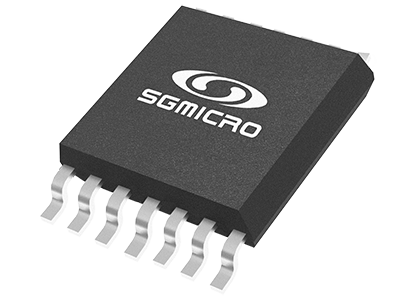

The SGM8902 is available in a Green TSSOP-14 package. It operates over an ambient temperature range of -40℃ to +85℃.

FEATURES

 Supply Voltage Range: 3V to 5.5V

 Output Voltage into 2.5kΩ Load

 2Vrms at 3.3V Supply Voltage

 3Vrms at 5V Supply Voltage

 Capless Structure

 Pop/Click-Free

 Eliminates Output DC-Blocking Capacitors

 Provides Flat Frequency Response

 Differential Inputs

 Low Noise and THD

 SNR = 114dB (TYP)

 VN = 5.5μVrms (TYP)

 THD+N = 0.001% (f = 1kHz)

 -40℃ to +85℃ Operating Temperature Range

 Available in a Green TSSOP-14 Package

APPLICATIONS

LCD TV

Set-Top Box

Home Theater

Blue-Ray DVD-Players
