The SGM4808 is an audio click-pop eliminator which can operate from a 2.7V to 12V single power supply. It is designed for HiFi audio system or portable devices.

The SGM4806 allows -VCC to +VCC wide range audio signals passing with low distortion. An external processor can eliminate the click-pop noise.

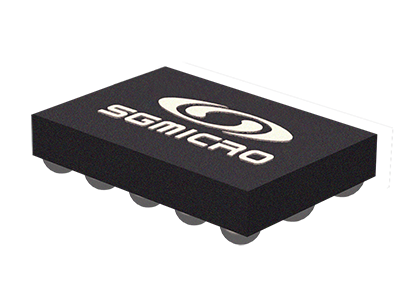

The SGM4808 is available in Green TQFN-2.6×1.8-16L and SOIC-16 packages. It operates over an ambient temperature range of -40℃ to +85℃.

• Supply Voltage Range: 2.7V to 12V

• Low On-Resistance: 1.1Ω (TYP)

• -VCC to +VCC Rail-to-Rail Low Distortion Audio Signals Passing

• Fast Switching Times

• High Off-Isolation

• Low Crosstalk

• 1.8V Logic Control

• -40℃ to +85℃ Operating Temperature Range

• Available in Green TQFN-2.6×1.8-16L and SOIC-16 Packages
