The SGM6501 is a video switch matrix which features 12 input channels and 9 output channels. The architecture allows any of the 12 inputs to be routed to any of the 9 outputs, and it supports one input to one output or one input to more outputs switching. The routing map is configured by I 2 C-compatible serial interface.
The SGM6501 has the input clamp function and bias circuitry, the input clamp or bias mode is selectable through I 2 C interface. Integrated clamp is supported by each input. The function is to set video output sync level to approximately 600mV. If sync signal (Chroma, Pb, Pr) is absent, the input is biased by approximately 1.3V, which is the center of input voltage range.

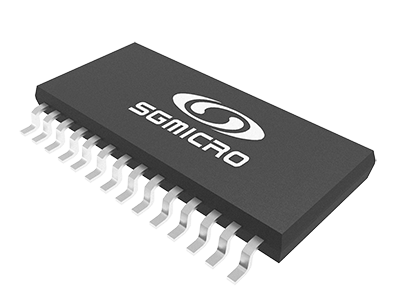

The SGM6501 is available in Green SSOP-28 and TSSOP-28 packages. It operates over an ambient temperature range of -40℃ to +85℃.
FEATURES
● Single-Supply Voltage Range: 3.1V to 5.5V
● 12 × 9 Crosspoint Switch Matrix
● Supports Standard Definition (SD), Progressive Scan (PS), and High Definition (HD) Video
● -3dB Bandwidth: 84MHz
● Low Crosstalk: -74dB at 1MHz
● Programmable Gain Options: 6dB, 7dB, 8dB, or 9dB
● Input Bias Circuitry and Input Clamp Function
● Supports I2 C Serial Interface
● Double-Load 75Ω Output Drivers
● AC- or DC-Coupled Inputs and Outputs
● Available in Green SSOP-28 and TSSOP-28 Packages
APPLICATIONS
Security and Surveillance
TV and HDTV
Automotive Entertainment System
Media Centers
Video Routing
Cable and Satellite Set-Top Boxes
