The SGM5347-8 features 8 channels of 8-bit digital-toanalog converter (DAC) with output amplifiers. The output amplifier provides high current drive capability. The digital data is input via a serial link bus. Only three control lines are required, and cascaded connections can be used. The SGM5347-8 provides daisy-chain capability, which can update multiple SGM5347-8s simultaneously by using a single serial interface.

The SGM5347-8 is available in Green SOIC-16 and TSSOP-16 packages. It operates over an ambient temperature range of -40℃ to +125℃.

FEATURES

● Low Power Consumption (0.5mW/CH)

● Integrating 8 Channels of 8-Bit DAC

● Build-In Analog Output Amplifier: Sink/Source Current with Short Current Control

● Daisy-Chain Operation

● 8 Channels Outputs Update Simultaneously

● Independent Channel Power-Down Function

 0.6μA (TYP) ICC for Power-Down Mode

● The Range of D/A Conversion can be Independently Set by Separating the Power Supply for MCU Interface and Operational Amplifier and the Power Supply for DAC

● Capable of Being Controlled Directly by a 3V MCU

● Power-On Reset: Output Reset to GND

● Serial Data Input: Up to 2.5MHz Operation

● Power Supply Voltage Range: 2.8V to 5.5V

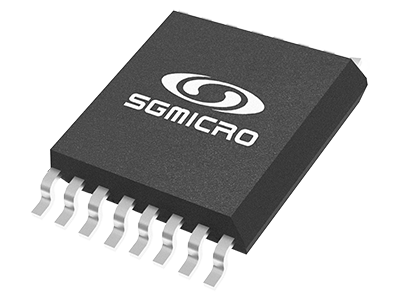

● Available in Green SOIC-16 and TSSOP-16 Packages
