The SGM42507 is an integrated driver IC for driving motors and coils in industrial applications. The PH and EN/FAULT pins allow simple interfacing to controller circuits.

Internal protection functions are provided for undervoltage lockout (UVLO), over-current protection (OCP) and over-temperature protection (OTP). Fault conditions are indicated by the EN/FAULT pin.

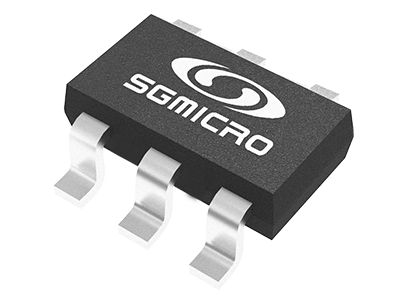

The SGM42507A is available in a Green TSOT-23-6 package. The SGM42507B/C are available in Green SC70-6 and TSOT-23-6 packages. They operate over an ambient temperature range of -40℃ to +125℃.

FEATURES

● Internal OC/UV/OT Protections

 Over-Current Threshold Options: 0.45A/0.9A/1.5A

 Under-Voltage Threshold Options: 1.75V/2.8V/3.6V

 Over-Temperature Protection

● Up to 7.5V Supply Range for Applications Powered by:

 1 Li+/Poly Cell

 2/3/4 Dry Cells

 1/2 LiSOCl2 Cell(s)

● Selectable Slow or Fast Decay Modes

● -40℃ to +125℃ Operating Temperature Range

● SGM42507A is Available in a Green TSOT-23-6 Package SGM42507B/C are Available in Green SC70-6 and TSOT-23-6 Packages

APPLICATIONS

Robot

Utility Meter

Solenoid
