The SGM4062 is designed for front-end protection of Li-Ion battery charger.

The SGM4062 works like a linear regulator, and constantly monitors the input voltage and battery voltage to maintain an output voltage of 5.1V, and the input voltages reach the input over-voltage threshold (VOVP = 6.8V).

The SGM4062 has temperature monitoring function. When the temperature exceeds 145℃, the device will switch off. The SGM4062 provides a fault status indication when it is controlled by the processor.

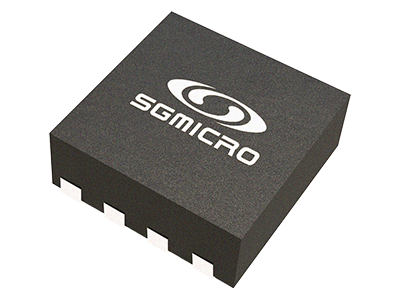

The SGM4062 is available in Green TDFN-2×2-8L and MSOP-8 (Exposed Pad) packages and is rated over the -40℃ to +85℃ temperature range.

FEATURES

● Input Over-Voltage Protection

● Battery Over-Voltage Protection

● Up to 18V Input Voltage

● Up to 1.5A Load Current Capability

● Soft-Start and Soft-Stop Function

 Prevent Inrush Currents and Voltage Spikes

● Thermal Shutdown Protection

● Enable Function

● Fault Status Indication

● Available in Green MSOP-8 (Exposed Pad) and TDFN-2×2-8L Packages

APPLICATIONS

Portable Internet Devices and Accessory

Mobile Phones and PDAs

Handheld Equipment

MP3 Players
