The SGM3110 is a regulated switched-capacitor boost converter with low-power consumption. This device is characterized by very low quiescent current. There is no need to connect inductors outside the chip. The small package size makes the device very suitable for space limited applications.

Different input voltages can produce a regulated output voltage. It is capable of supplying 100mA output current.

SGM3110 has thermal shutdown function to protect the equipment under short-circuit conditions.

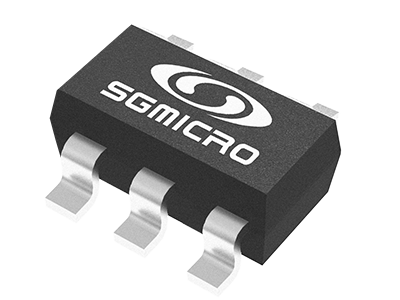

The SGM3110 is available in a Green SOT-23-6 package and is rated over the -40 ℃ to +85 ℃ temperature range.

FEATURES

● Input Voltage Range: SGM3110-5.0: 2.7V to 5.0V SGM3110-4.5: 2.7V to 4.5V

● Boost Converter

● Quiescent Current: 60µA (TYP)

● 4.5V and 5V Regulated Output Voltages with ±4% Accuracy

● 250mA Peak Current for 100ms

● 750kHz Switching Frequency

● Logic-Controlled Shutdown

● Integrated Protection Features:

 Short-Circuit Protection

 Over-Temperature Protection

● Available in a Green SOT-23-6 Package

APPLICATIONS

PDAs

GPS Receivers

Cellular Phones

Digital Cameras

Handheld Electronics

LED Backlight Drivers

Portable Communication Devices
