The SGM6010 is a synchronous, buck DC/DC converter with a range of 3V to 5.5V input voltage. This device is capable to provide a 3A continuous output current. It operates with a programmable frequency range of 300kHz to 2MHz. The SGM6010 is highly efficient with peak efficiency at 95% when in operation. The 100% duty cycle could make the lowest dropout.

The forced continuous pulse width modulation (PWM) mode operation could decrease the ripple voltage to the lowest level and reduce noise and RF interference as well. No external power MOSFETs and Schottky diode are required because of the internal synchronous low on-resistance power switches. The external compensation can improve the transient response across the loads and output capacitors.

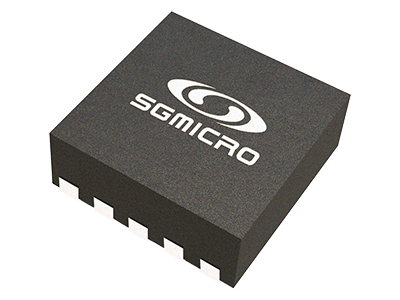

The SGM6010 is available in a Green TDFN-3×3-10L package. It is rated over the -40℃ to +85℃ temperature range.

FEATURES

● 3V to 5.5V Input Voltage Range

● Up to 95% High Efficiency

● 120mΩ Low RDS(ON) Internal Switches

● 300kHz to 2MHz Programmable Frequency

● 3A Output Current

● 0.8V Reference Allows Low Output Voltages

● Shutdown Current: 2μA (MAX)

● 100% Duty Cycle for Lowest Dropout

● Forced Continuous PWM Mode Operation

● No External Power MOSFETs and Schottky Diode Required

● Excellent Line and Load Transient Responses

● -40℃ to +85℃ Operating Temperature Range

● Available in a Green TDFN-3×3-10L Package

APPLICATIONS

Digital Book Readers

Digital Cameras

Portable Instruments

Wireless and DSL Modems

Battery-Powered Systems

Microprocessor, DSP Power Supplies
